Film Foil Capacitors, APP Capacitors

We are Manufacturer, Supplier, Exporter of Film Foil Capacitors, APP Capacitors from Islampur, Sangli, Maharashtra, India.

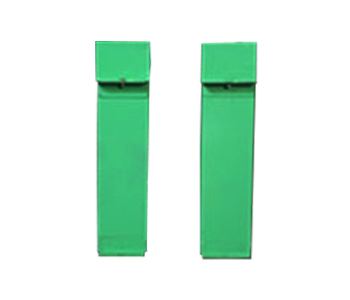

Film App Capacitors
Request A Quote
Features
  • Uses Imported hazy BOPP film as main Dielectric
  • Uses Non-PCB, Non Toxic PXE Oil as Impregnant
  • Uses High Purity (> 99%) Aluminium Foil as Electrode for High Current inrush
  • Basic elements are vacuum impregnated with NPCB PXE oil.
  • Extended foil Technology.
  • Internal Fuse to Each element is possible for better safety.
  • Capacitors can withstand the dynamic fluctuations of load.
  • Withstands Higher Over voltage i.e. up to 20 % of Rated Voltage.
  • Withstands Higher Over loads i.e. 75 - 100 % of Rated Current.
  • Low energy consumption i.e. Watt Loss.
  • Guaranteed Output for a longer period i.e. 10 - 15 yrs.

Technical Specification
Reference IS IS 13585
Output Range 1 Kvar to 25 Kvar
Working Voltage Upto 1000 Volts AC.
No. of Phases Single / Three.
Temp. Category 55 Deg. C Max.
Capacitance Tolerance 0 % to + 10 %
Permitted Over Voltage 1.20 Times of rated voltage
Permitted Over Current 1.50 Times of rated current
Frequency 50 Hz.
Losses < 0.50 w / kvar
Cooling Natural air + PXE Oil
Installation Indoor, Floor Mounting
In-rush Current 300 times of rated current.
Applications

These Capacitors are suitable for Three Phase Power Factor Correction where there is Dynamic fluctuation of load and system Voltage variation is around 20 %.

Paper Industries, Steel Industries, Re-rolling Mills, Sugar Industries, Cement Plants, Welding Machines, Spinning Mills, Textile Mills, Arc Furnaces, Induction Furnaces, D.C. Drives & Harmonic Filters etc.
